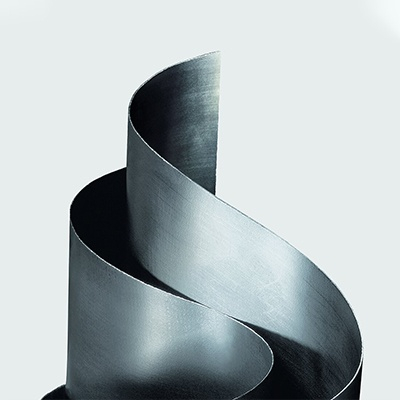

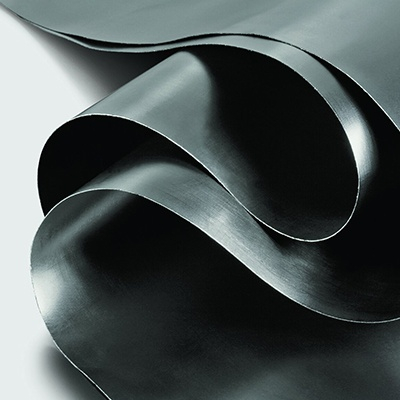

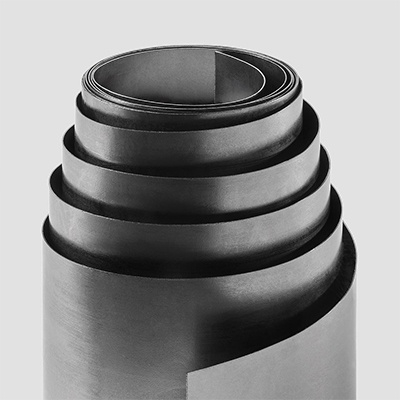

JPGRAPHITE Graphite Foil Roll Manufacturer

Graphite foil is an excellent sealing material for the transfer of high temperature, high pressure liquids, gases, vapors, chemicals and corrosive substances. JPGRAPHITE offers Graphite Foil Rolls (sold in rolls), Graphite Sheets, Graphite Rings and Graphite Discs.
Availability:

JPGRAPHITE Graphite Foil Roll Manufacturer

JPGRAPHITE Graphite Foil Roll Manufacturer

Excellent sealing material for transfer of high temperature, high pressure liquids, gases, vapors, chemicals and corrosive substances.


Graphite foil is an excellent sealing material for the transfer of high temperature, high pressure liquids, gases, vapors, chemicals and corrosive substances.

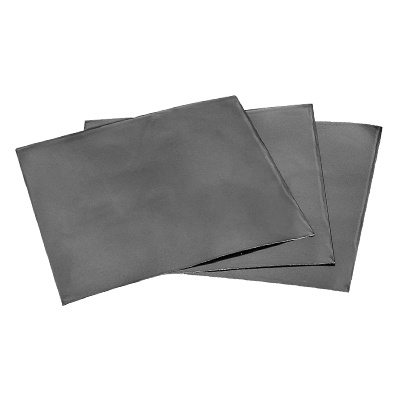

JPGRAPHITE offers Graphite Foil Rolls (sold in rolls), Graphite Sheets, Graphite Rings and Graphite Discs.


Graphite Foil Roll - APPLICATION

1. Graphite foil is an excellent graphite gasket sheet used in automotive, petroleum and chemical, paper and nuclear industries.

2. Acts as a thermal barrier at high temperatures to provide excellent reflectivity.

3. Graphite foil is used to manufacture bipolar graphite plates in the fuel cell industry.

4. Ideal for use as graphite foil seals for sealing high temperature valves, shafts and flanges.

5. Excellent lining and protection for vessels containing hot or corrosive fluids.


ADVANTAGE


  • Excellent thermal stability and reflectivity.

  • Low temperature resistance -200°C.

  • Resistant to high temperatures of 450°C in air, 700°C in steam, and 3000°C in inert or reducing environments.

  • Chemically Inert: Resists fluids in the pH range 0-14 (except for strong oxidizing agents such as nitric or sulfuric acid).

  • High Purity: Eliminates potential fluid contamination and is ideal for nuclear applications.

  • Low coefficient of friction: self-lubricating.

  • Asbestos Free: No associated health hazard.

  • Low electrical resistivity and high thermal conductivity.

  • The shape is flexible, compressible and compliant.

  • Highly anisotropic: Electrical and thermal conductivity properties differ greatly in the directions parallel and perpendicular to the flakes.

  • Excellent process life: saves replacement and downtime costs.

  • High purity and carbon content with a minimum carbon content of 99%.


E-mail: jinpengcarbon@gmail.com


Graphite Foil Roll - ADVANTAGE


WHY CHOOSE JPGRAPHITE

1. Wide Range Of Graphite Foils

We offer a full line of graphite foils: homogeneous graphite foil rolls and flexible graphite sheets (2" to 60" wide), as well as carbon graphite reinforcements inserted into stainless steel or perforated stainless steel sheets. Standard rolls are 39.4" x 100'. Non-standard sizes and grades are also available upon request.


2. Competitive Price

We will customize more cost-effective solutions according to your needs, and we ship directly from the factory, eliminating intermediate costs.


3. Quality Assurance

We process from flake graphite according to international standards, high-quality graphite foil with high strength, high purity and excellent compressibility, certified to ISO 9001.


If necessary, please feel free to contact us!


TRANSPORTATION


Packaging:

Standard export carton and plywood case.

Customized shipping mark.

QC department will check in case if the packing method is safe enough or not.


Shipping:

Door to door service by courier like DHL , UPS etc. , usually 3 ~ 4 days to arrive.

By air to the air port, it takes about 5 ~ 7 days to arrive usually.

By sea to the sea port, it takes about 15 ~ 30 days to arrive usually.


FAQ

Q1: Do you have a product catalog?

A: Yes, please send your request to jinpengcarbon@gmail.com, we will reply as soon as we see it.


Q2: Do you have clear product pictures?

A: Yes, friends, we can provide different detailed pictures of this product.


Q3: What is the quality of this component?

A: We are ISO9001 certified products, and 100% quality inspection is carried out on shipping.


Q4: How long does it take to make? How long does it take to ship?

A: Our production time is determined by the amount and complexity of customization. It will be shipped within 15-30 days after the production is completed (including the quality inspection time before delivery).


Q5: Can we test samples first?

A: Of course you can, but you need to pay for the sample cost and shipping costs.
