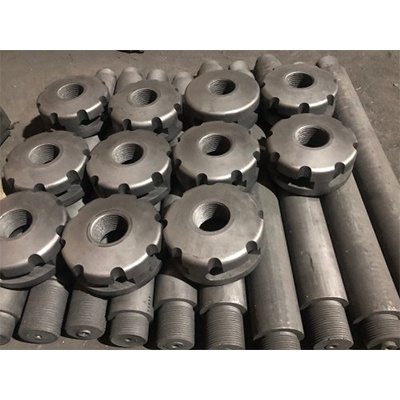

Graphite Rotor And Shaft & Graphite Degassing Tube

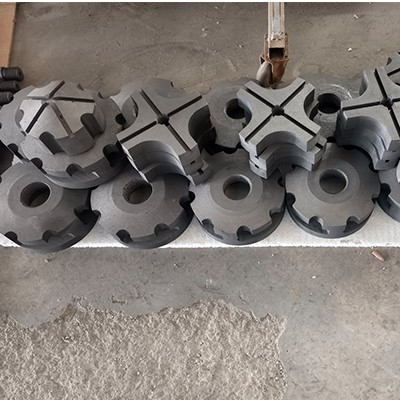

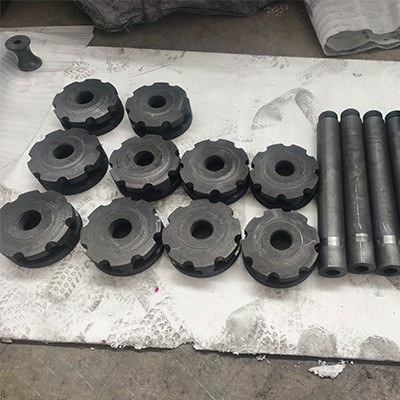

Graphite Rotor/Impeller And Shaft Set
Rotor and shaft set is necessary to inject inert gas and stir for degassing regarding both intermittent and continuous online degassing methods. Because of properties of heat-resistance, anti-oxidation, high strength and non- infiltration, graphite becomes the optimal choice for material of rotor and shaft, which is named graphite rotor/impeller and shaft set.
WORKING PRINCIPLE
During aluminum and aluminum alloy smelting, hydrogen produced by chemical action with steam diffuse in molten aluminum, which will cause inner structural defect to aluminum products. In order to avoid such defect, most aluminum factories apply dissolved gas floating method to purify molten aluminum. i.e. inert gases such as nitrogen, argon is injected into molten aluminum, and hydrogen will be brought to molten aluminum surface with spread and rise of inert gas.
APPLICATION
Graphite rotor and shaft | graphite degassing units are widely used in Aluminum Treatment. When casting aluminium melts, significant improvements in the quality of the castings can be achieved by gas flushing treatments. Gas injection tubes, gas distribution systems, and degassing tubes made of graphite are Well suited for this purpose, as the graphite proves resistant to the flushing gases utilized, namely particularly chlorine, nitrogen and argon as well as their mixtures and further aggregates.

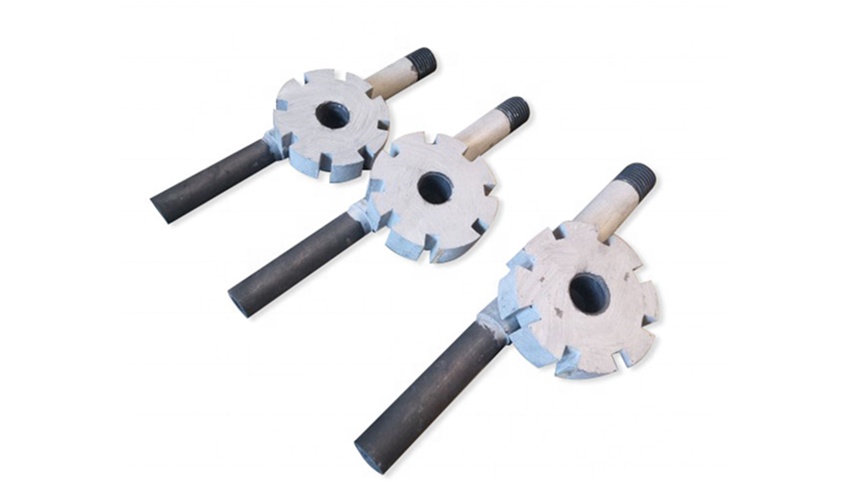

ADVANTAGE
Best raw material. Specialty graphite with high strength, high hardness, good heat-resistance, low porosity, anti-abrasion and anti-scour.
Precision machining. Machining process strictly conforms to customers' drawings. After machining, different parts match perfectly with high concentricity, which avoid damage caused by mechanical stress to the graphite rotor and shaft.
Special Treatment
Impregnation Anti-oxidation Treatment. To extend service life of graphite rotor and shaft, Yinxuan Carbon proprietary technology and nanometer anti-oxidant are applied to fill pores of graphite material and cover surface of graphite rotor and shaft, which improves properties of heat-resistance, anti-oxidation and anti-scour.
Coating anti-oxidation Treatment. Yinxuan Carbon proprietary coating material is applied to already impregnated anti-oxidation graphite rotor and shaft except screw threads. The coating material is non-infiltrated with aluminum, but well adhered to graphite material. Because the coating material is heat-resisting, anti-oxidation, anti-corrosion and anti-scouring the graphite rotor and shaft after further coating treatment has much longer lifespan.
Partial strengthening Method. According to end-users' application situation, we are capable to strengthen the most easily consumed part to get the longest service life for graphite rotor and shaft with lowest cost.
E-mail: jinpengcarbon@gmail.com
JPGRAPHITE is a professional carbon graphite manufacturing company with over 20 years of experience. We have complete production processing and professional CNC equipment's and advanced tech processes to produce carbon graphite products.
We accept customized carbon graphite product orders and provide tech consulting with the product application. We mainly offer graphite crucibles, graphite rotors, graphite block, graphite plate, graphite rod, graphite heating parts, graphite pipes.
We severing industries like the Metallurgical and chemical industry, High-temperature heat treatment, glass, ceramic industry, Environmental water treatment industry, Bearing seal applications. We are a manufacturer; we do not have an extra service fee. We export our products worldwide.
Packaging:
Standard export carton and plywood case.
Customized shipping mark.
QC department will check in case if the packing method is safe enough or not.
Shipping:
Door to door service by courier like DHL , UPS etc. , usually 3 ~ 4 days to arrive.
By air to the air port, it takes about 5 ~ 7 days to arrive usually.
By sea to the sea port, it takes about 15 ~ 30 days to arrive usually.
Q1: Do you have a product catalog?
A: Yes, please send your request to jinpengcarbon@gmail.com, we will reply as soon as we see it.
Q2: Do you have clear product pictures?
A: Yes, friends, we can provide different detailed pictures of this product.
Q3: What is the quality of this component?
A: We are ISO9001 certified products, and 100% quality inspection is carried out on shipping.
Q4: How long does it take to make? How long does it take to ship?
A: Our production time is determined by the amount and complexity of customization. It will be shipped within 15-30 days after the production is completed (including the quality inspection time before delivery).
Q5: Can we test samples first?
A: Of course you can, but you need to pay for the sample cost and shipping costs.
