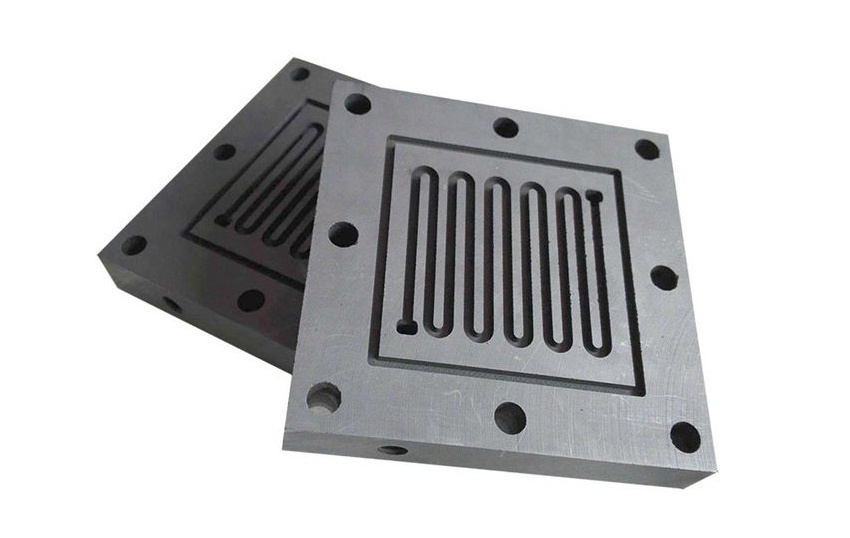

Graphite Bipolar Plates For Fuel Cells

Graphite bipolar plates for fuel cells are one of the core components of PEMFC. Its main function is to transport gas through the flow field on the surface, collect and conduct the electric current, heat and water generated by the reaction. Depending on the type of material, it accounts for about 60%-80% of the weight of a PEMF stack and about 30% of the cost. If there is a demand, please feel free to customize the drawings.
Availability:


Graphite Bipolar Plates For Fuel Cells


Graphite Bipolar Plates For Fuel Cells


Product Information


Graphite bipolar plates for fuel cells are one of the core components of PEMFC. Its main function is to transport gas through the flow field on the surface, collect and conduct the electric current, heat and water generated by the reaction. Depending on the type of material, it accounts for about 60%-80% of the weight of a PEMF stack and about 30% of the cost. If there is a demand, please feel free to customize the drawings.


E-mail: jinpengcarbon@gmail.com


Specification


Origin: Shandong, China

Brand Name: JPGRAPHITE

Applications: fuel cell electrodes, metallurgy, water treatment, etc.

Dimensions: according to customer requirements, can also be processed according to drawings.

Chemical Composition: 99% Carbon

Type: Industrial Grade


Bipolar Plate Features


1. High temperature resistance

2. Specific thermal shock resistance

3. Thermal conductivity and electrical conductivity

4. Lubricity

5. Chemical stability


Graphite Bipolar Plates For Fuel Cells

Working Principle


According to the functional requirements of the bipolar plate, and considering that the electrochemical reaction environment of PEMFC is acidic, the bipolar plate is required to have higher requirements in terms of electrical conductivity, air tightness, mechanical properties, and corrosion resistance. , Graphite bipolar plate is currently the most commonly used bipolar plate in PEMFC, which has good electrical conductivity, thermal conductivity, stability and corrosion resistance.


Bipolar plates are multifunctional components in a PEM fuel cell stack. It connects and separates individual fuel cells in series to form a fuel cell stack with the required voltage, fuel gas and oxygen (MEA) are evenly distributed over the entire active surface area (MEA) of the membrane electrode assembly, transferring charge from the cells carried by the anode to The cathode, basically the bipolar plate is the conducting plate that combines the anode of one charge with the cathode of another charge.


About Us


JPGraphite carbon composite plates were sold throughout the country and exported to Europe, America, Southeast Asia and other countries and regions which enjoy a high reputation all over the world. We hope to establish a good business relationship with you; We will serve you with the best quality, best delivery time and best solutions.


About JPGraphite


Transportation

Transportation


Packaging:

Standard export carton and plywood case.

Customized shipping mark.

QC department will check in case if the packing method is safe enough or not.


Shipping:

Door to door service by courier like DHL , UPS etc. , usually 3 ~ 4 days to arrive.

By air to the air port, it takes about 5 ~ 7 days to arrive usually.

By sea to the sea port, it takes about 15 ~ 30 days to arrive usually.


FAQ


Q1: Do you have a product catalog?

A: Yes, please send your request to jinpengcarbon@gmail.com, we will reply as soon as we see it.


Q2: Do you have clear product pictures?

A: Yes, friends, we can provide different detailed pictures of this product.


Q3: What is the quality of this component?

A: We are ISO9001 certified products, and 100% quality inspection is carried out on shipping.


Q4: How long does it take to make? How long does it take to ship?

A: Our production time is determined by the amount and complexity of customization. It will be shipped within 15-30 days after the production is completed (including the quality inspection time before delivery).


Q5: Can we test samples first?

A: Of course you can, but you need to pay for the sample cost and shipping costs.
